The PhotoDB web interface, PhotoApp, can be used as an annotation tool. For a detailed explanation of this functionility see PhotoApp Viewer.

During annotation a list of possible classification labels, i.e. classes, can be specified. These predefined classes can then be selected effortlessly by the user during annotation. This prevents having different notations of the same object in the metadata, which might happen when users type labels themselves during annotation. If an object is not in the predefined classification list, it is always still possible for the users to type the label themselves during annotation.

The classification definition is supplied as a CSV file. This file is given as classification_definition_csv in the project configuration file config.yaml, e.g.:

classification_definition_csv: photo_classification_definitions.csv

Inside the photo_classification_definitions.csv file, class names and descriptions are supplied, e.g.:

# comment
name, description
branch, singular oak branch
leaf, singular oak leafs
herbivory, visible inner leaf damage
newflush, newly developed leaf flush
crp, color reference panel
oak1, top left potted plant
oak2, top middle potted plant
oak3, top right potted plant
oak4, bottom left potted plant
oak5, bottom middle potted plant
oak6, bottom right potted plant

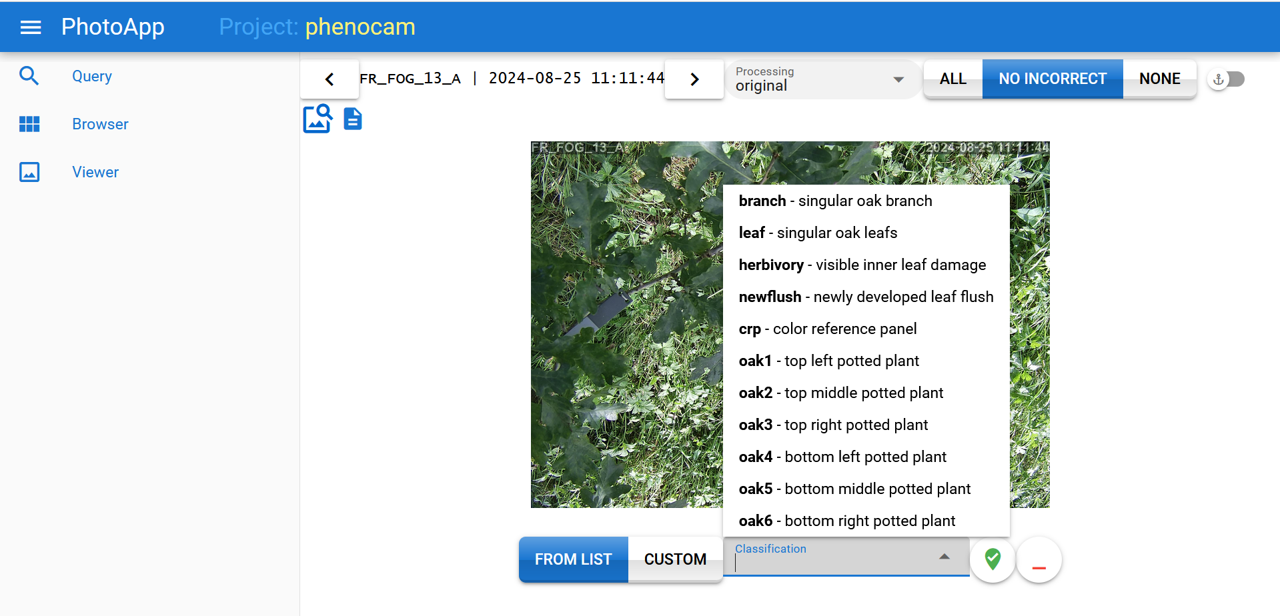

During annotation these classes can be selected from a drop-down menu:

PhotoApp classification definition drop down menu

The classification definition file is in CSV format with comma separated columns name and description.

name will be used as classification label that can be set at the web interface and that is stored in the photo meta data. Short names are recommended.

description specifies the exact meaning of name. It is shown at the web interface classification label selection control as descriptive annotation.

To disable a line in the CSV file set the # character at the beginning of a line to comment out that line.
